Ulvac Oil Rotary Vacuum Pump
Ulvac Oil Rotary Vacuum Pump Ulvac Kiko Small Oil Rotary Vacuum Pump Ulvac Kiko Dry Vacuum Pump

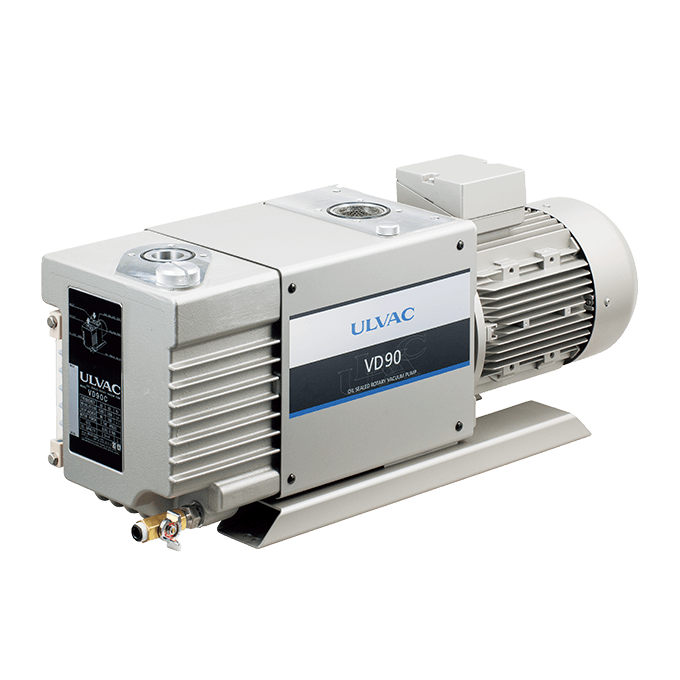

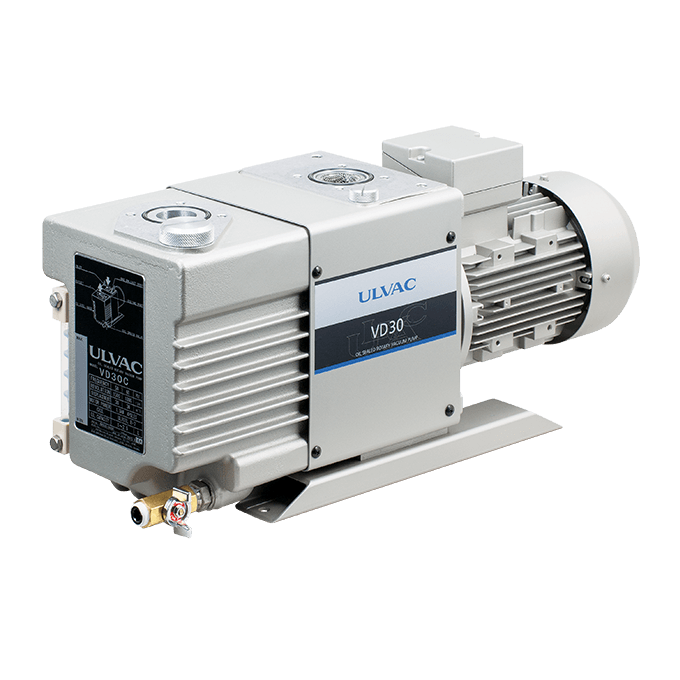

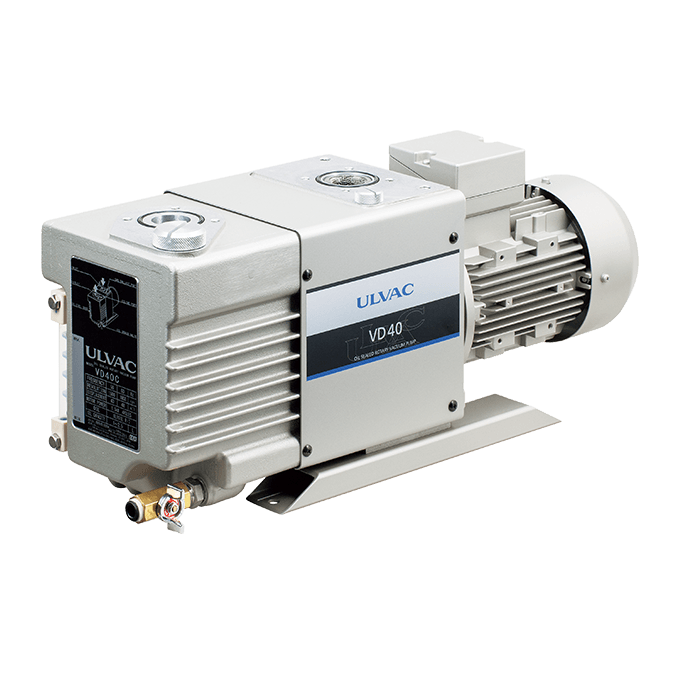

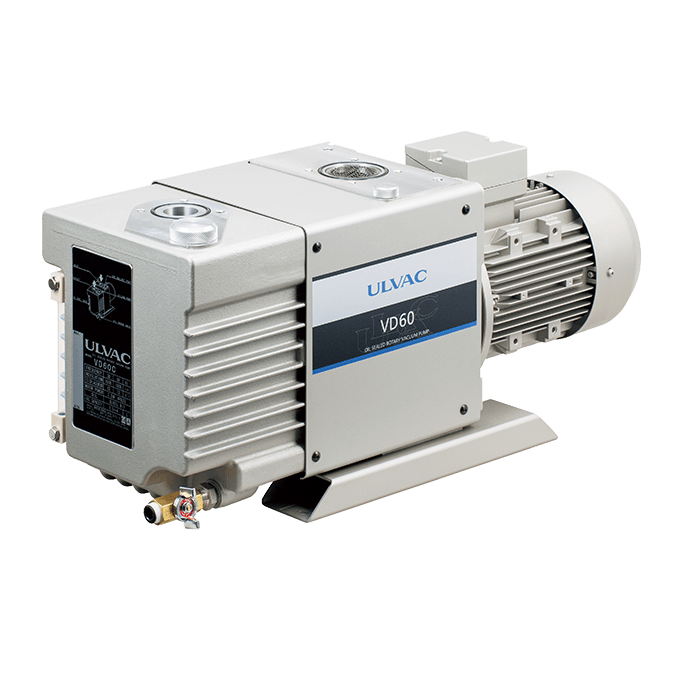

VD Series - Direct Drive Oil Rotary Vacuum Pump
 VD-301VD-401VD-601VD-901
Item / Model VD-151 VD-201 VD-301 VD-401 VD-601 VD-901
Pumping Speed 50 Hz l/min 336 240 500 670 1000 1500
Ultimate Pressure Pa 0.67
Voltage Available 200V ~ 415V / 3 Phase / 50 Hz
Oil Capacity Litre 0.7 ~ 1.1 1.0 ~ 2.5 2.5 ~ 4.0
Pump Oil Model Ulvoil R7
Cooling Method Air Cooled
Inlet  KF25 VG40 VG50
Outlet  G1 VG40
Weight kg 29 34 59 61 88 105
Dimension (mm) W x L x H 170x514x240 181x536x269 240x605x324 240x625x324 298x725x371 294x820x371
Oil Mist Trap TM-201 (Normal Load) / TM-401 (High Load) TM-401 (Normal Load) / TM-2 (High Load)

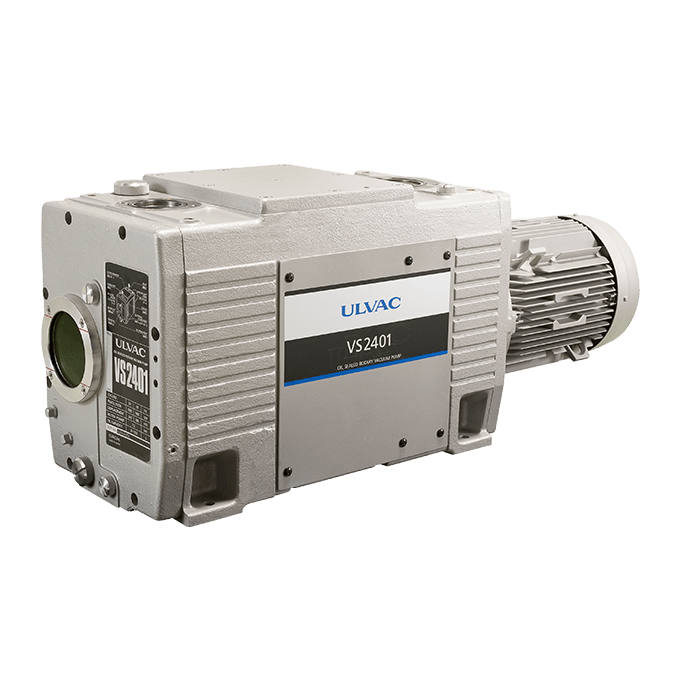

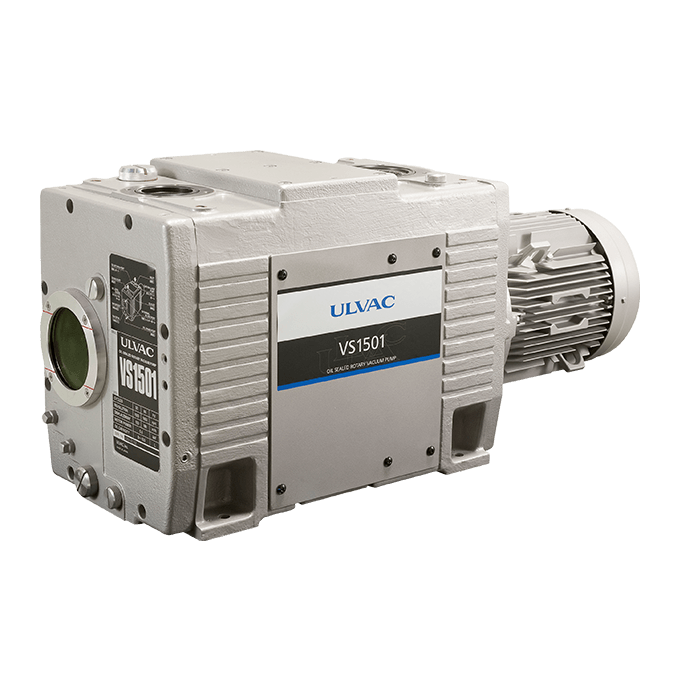

VS Series - Direct Drive Oil Rotary Vacuum Pump
VS-1501 VS-2401
Item / Model VS-1501 VS-2401
Pumping Speed  50 Hz  l/min 2,500 4,000
Ultimate Pressure Pa 5.3
Voltage Available 200V ~ 415V / 3 Phase / 50 Hz
Oil Capacity  Litre 8.0 to 10.5
Pump Oil  Model Ulvoil R7
Cooling Method Water Cooled
Inlet  VG80
Outlet  VG50
Weight  kg 240 280
Dimension (mm) W x L x H 940x352x460 1062x352x460
Oil Mist Trap TM-3 TM-4

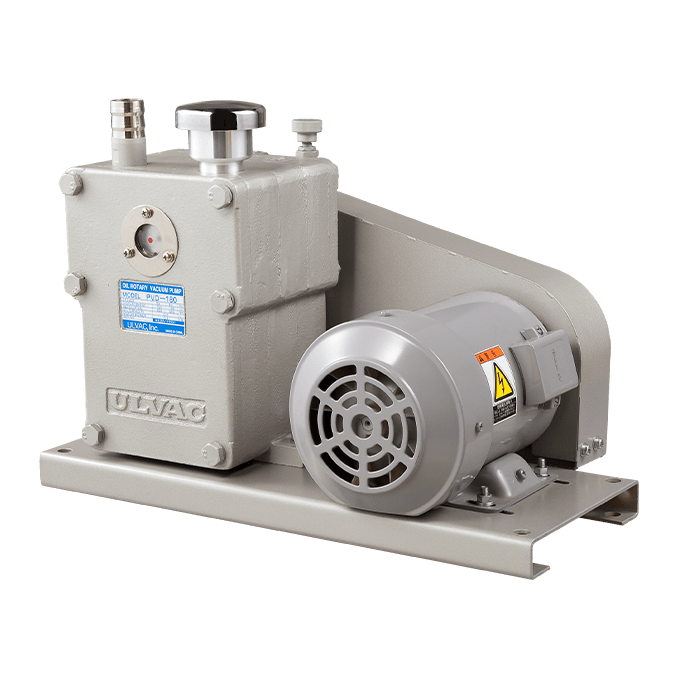

PVD Series - Belt Driven Oil Rotary Vacuum Pump
PVD-180B PVD-360
Item / Model PVD-180(B) PVD-360(B)
Pumping Speed  50 Hz  l/min 155 310
Ultimate Pressure Pa 0.67
Voltage Available 200V ~ 415V / 3 Phase / 50 Hz
Oil Capacity  Litre  0.3  0.5
Pump Oil  Model Ulvoil R7
Cooling Method Air Cooled
Inlet  (Inner x Outer diameter) 28 x 19 34 x 27
Outlet  G3/4 G1
Weight  kg 240 280
Dimension (mm) W x L x H 450x235x321 500x275x321
Oil Mist Trap TMX-1 (with Oil Mist Trap Adapter)

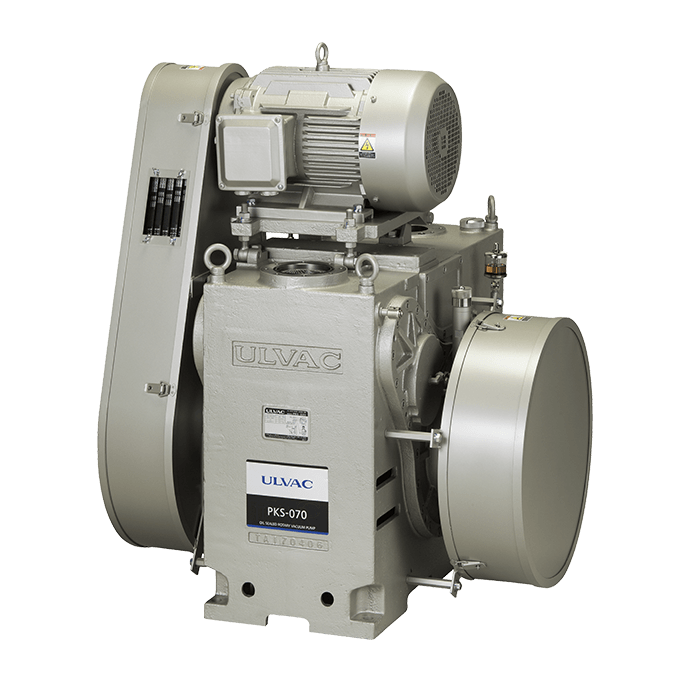

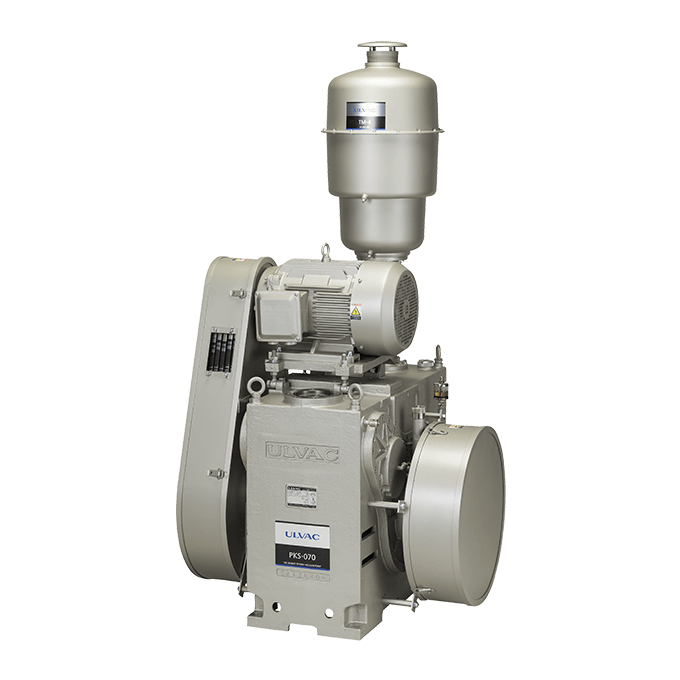

PKS Series - Belt Driven Oil Rotary Vacuum Pump
PKS-030 PKS-070
Item / Model PKS-016 PKS-030 PKS-070
Pumping Speed  50 Hz  l/min 1,600 3,000 7,000
Ultimate Pressure Pa 2.7
Voltage Available 200V ~ 415V / 3 Phase / 50 Hz
Oil Capacity  Litre  6.5  8.0 20.0
Pump Oil  Model Ulvoil R7
Cooling Method Air Cooled Water Cooled
Inlet  VG50  VG80  VG100
Outlet  VG50  VG80  VG100
Weight  kg 225 380 (Pump Only)  900 (Pump Only)
Dimension (mm) W x L x H 860x595x550 680x720x900 950x970x1145
Oil Mist Trap TM-2 TM-3  TM-4

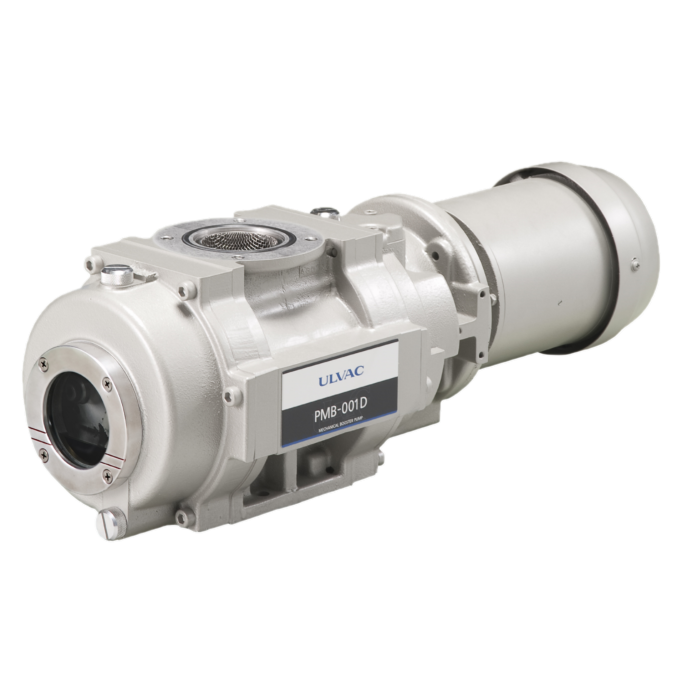

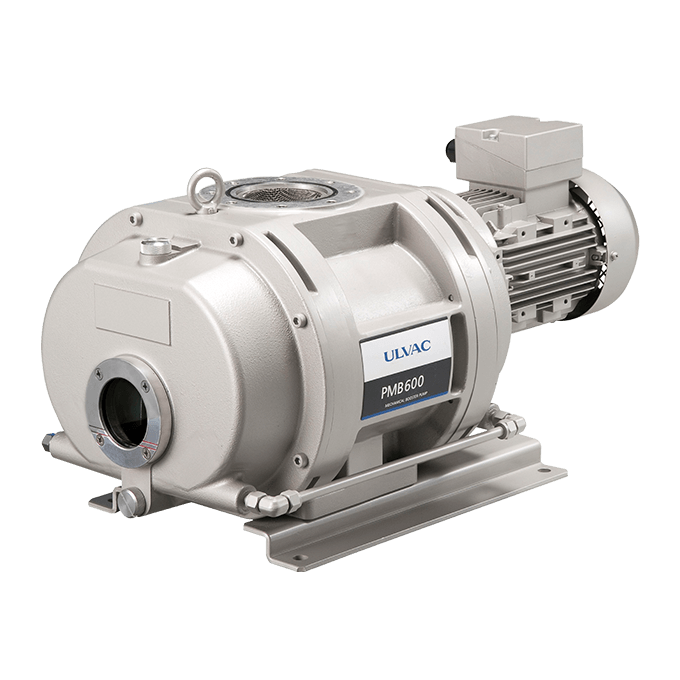

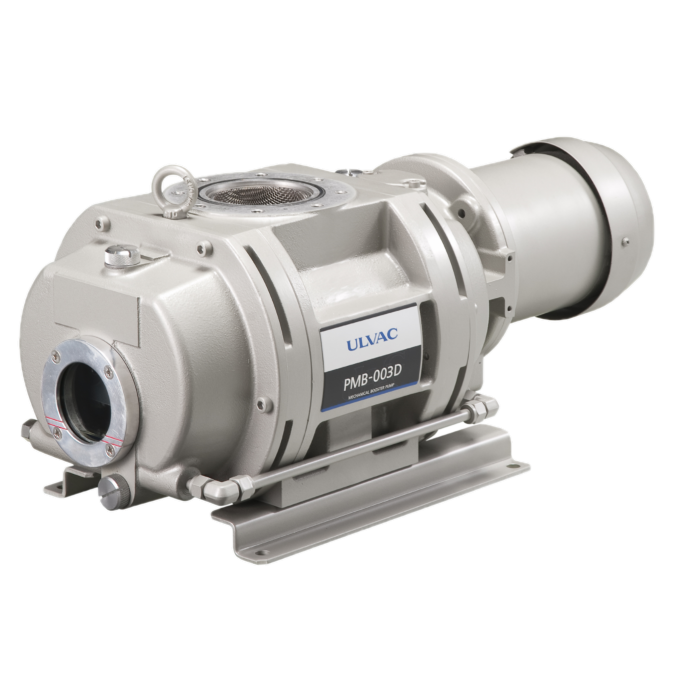

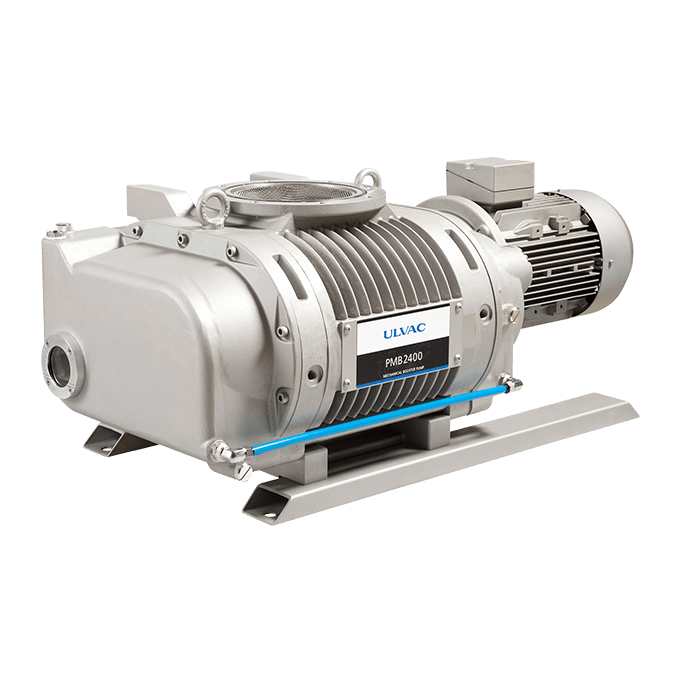

 PMB Series - Mechanical Booster Pump
PMB-100DPMB-300DPMD-600DPMB-2400D
Item / Model PMB-100D PMB-300D PMB-600D PMB-1200D PMB-2400D
Pumping Speed  50 Hz  l/min 1,580 4,670  8,330  16,667  33,330
Ultimate Pressure Pa 0.4 0.67
Multiple Voltage 200 ~ 240V / 380 ~ 415V
Oil Capacity  Litre  0.35 0.7 1.5 1.9 4
Pump Oil  Model Ulvoil R4
Cooling Method Air-Cooled Air-Cooled / Water-Cooled
Inlet Port VG50 VG80 VG100 VG200
Outlet Port VF50 VF80 VF200
Weight  kg 26 51 82 115 260
Dimension (mm) W x L x H 267x576x180 321x685x260 362x784x320  417x970x340 520x1260x460
Standard Auxiliary VD-401 VD-601 VD-901 VS-2401 PKS-070B

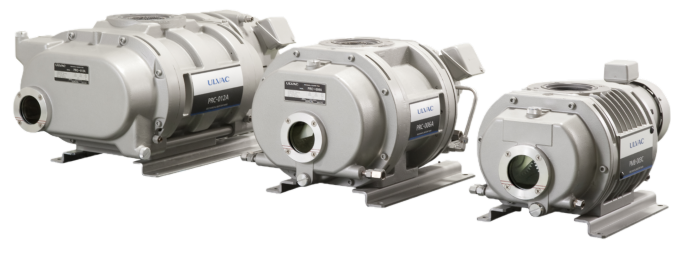

 PRC Series - Mechanical Booster Pump

PRC
Item / Model PRC-003A PRC-006A PRC-012A  PRC-018A
Pumping Speed  50 Hz  l/min 4,670 8,330  16,700  25,000
Ultimate Pressure Pa 0.4
Voltage Available 200V ~ 415V / 3 Phase / 50 Hz
Oil Capacity  Litre  0.7 2.2 3.7 5.5
Pump Oil  Model Ulvoil R4
Cooling Method Water Cooled
Inlet Port VG80  VG150
Outlet Port VF80 VF100
Weight  kg 51 86 118 150
Dimension (mm) W x L x H 271x580x180 290x656x260 296x565x260  356x619x320
Standard roughing pump VD-601 VD-901 VS-1501 VD-2401
