Ulvac Kiko Small Oil Rotary Vacuum Pump
Ulvac Oil Rotary Vacuum Pump Ulvac Kiko Small Oil Rotary Vacuum Pump Ulvac Kiko Dry Vacuum Pump

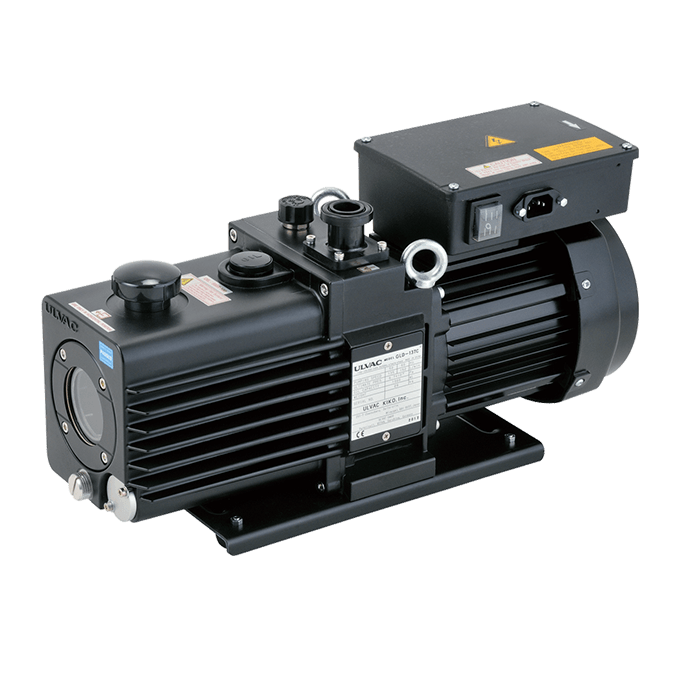

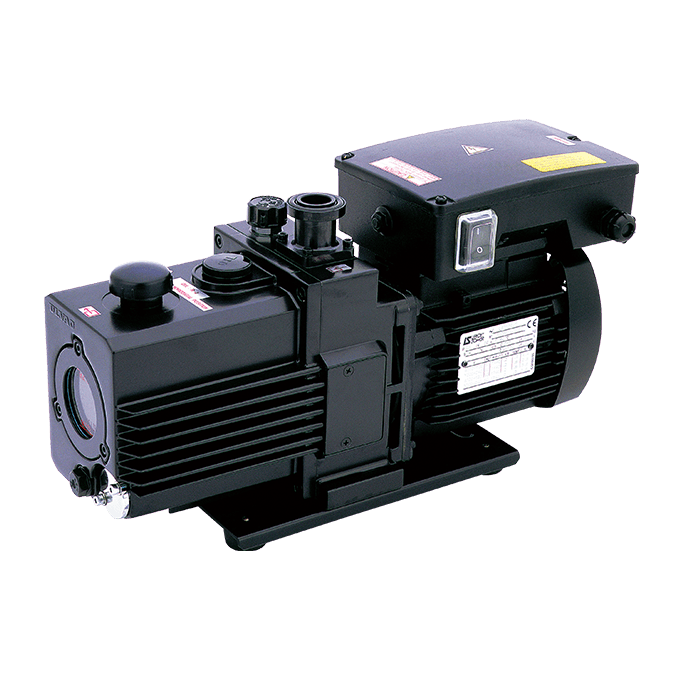

GLD Series - Small Direct Drive Oil Rotary Vacuum Pump
GLD-040GLD-137GLD-202GLD-280
Item / Model GLD-040 GLD-051 GLD-137 GLD-202 GLD-280
Pumping Speed 50 Hz l/min 40 50 135 20 280
Ultimate Pressure Pa 0.67
Voltage Available Multi-Range:
100~120V / 200 ~ 240V
1 Phase / 50 Hz		 Available: 100V / 220V
1 Phase / 50 Hz		 Option Avaliable
GLD-137AA - Multi-Range
200~460 V / 3 Ph / 50 Hz

GLD-137CC - Multi-Range
100~220V / 1 Phase / 50 Hz		 Option Avaliable
GLD-202AA - Multi-Range
200~460 V / 3 Ph/ 50 Hz

GLD-202BB - Multi-Range
100~220V / 1 Ph / 50 Hz 		 Option Avaliable
GLD-280(A) - Multi-Range
200~460 V / 3 Ph / 50 Hz

GLD-280(B) - Multi-Range
100~220V / 1 Ph / 50 Hz
Oil Capacity Litre 0.55 ~ 0.8 0.5 ~ 0.8  1.0 1.1  0.7 ~ 1.1
Pump Oil Model Ulvoil R2 SMR-100  Ulvoil R7
Cooling Method Air Cooled
Inlet  KF25
Weight kg 16 13.9 GLD-137AA: 26 kg
GLD-137CC: 29 Kg		 GLD-202AA: 29 kg
GLD-202BB: 31 Kg		 GLD-280A: 34 kg
GLD-280B: 42 Kg
Dimension (mm) W x L x H 150 x 427 x 228.5 165.5 x 395 x 222.5 GLD-137AA: 170 x 485.5 x 240
GLD-137CC: 170 x 487.5 x 249.5		 GLD-202AA: 170 x 513.5 x 240
GLD-202BB: 170 x 515.5 x 249.5		 GLD-280A: 181 x 536 x 269
GLD-280B: 182 x 585 x 271
Oil Mist Trap OMT-050A OMT-200A TMX-1 (with Adapter)

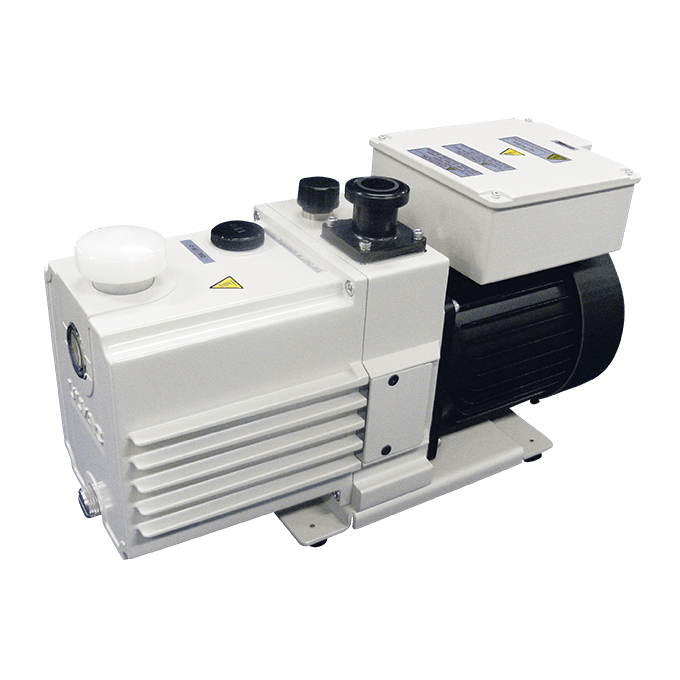

GHD Series - Small Direct Drive Oil Rotary Vacuum Pump
GHD-031GHD-101
Item / Model GHD-031A GHD-100A
Pumping Speed  50 Hz  l/min 30 100
Ultimate Pressure Pa 0.67 0.67
Voltage Available GHD-031A - 100V ~ 120V / 1 Ph
GHD-031B - 200V ~ 240V / 1 Ph		 100V ~ 220V / 1 Phase / 50 Hz
Oil Capacity  Litre 0.37 1.0
Pump Oil  Model Ulvoil R2 Ulvoil R2
Cooling Method Air Cooled Air Cooled
Inlet  KF25 KF25
Weight  kg 9.3 22.0
Dimension (mm) W x L x H 120 x 288.5 x 163 150 x 413.5 x 234.5
Oil Mist Trap OMT-050A OMT-100A

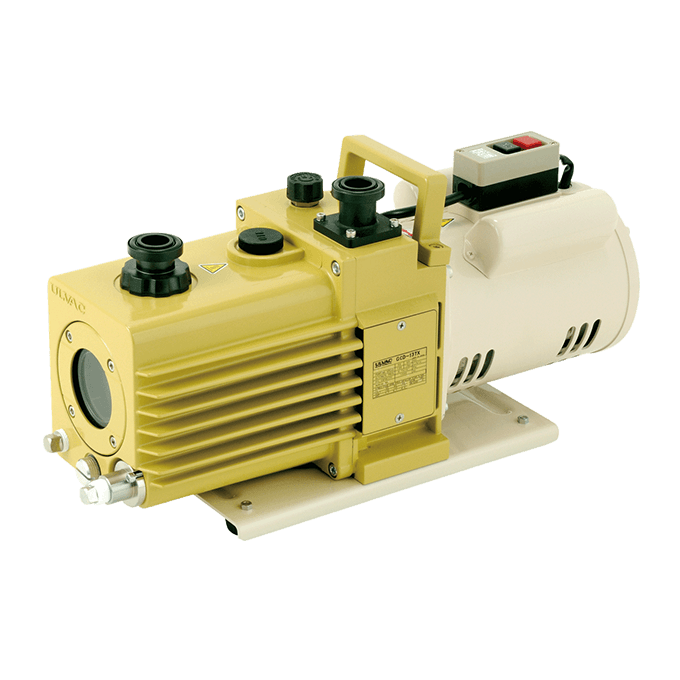

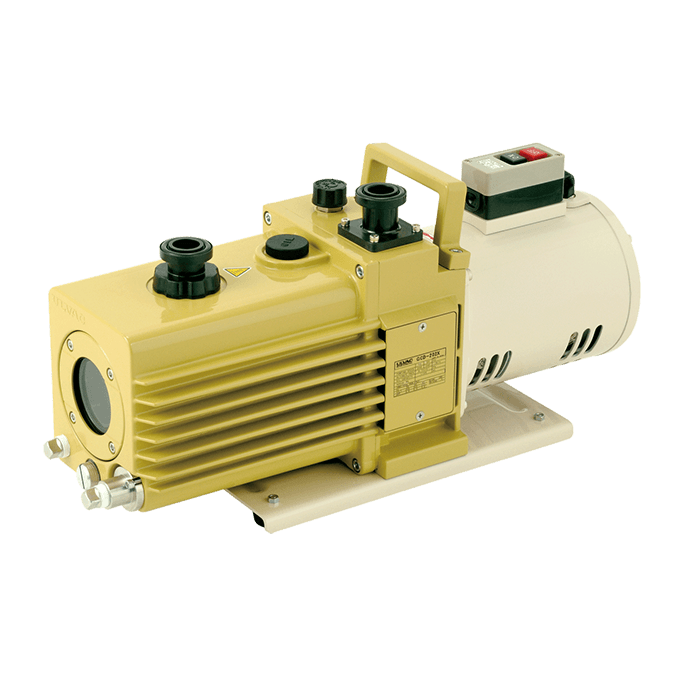

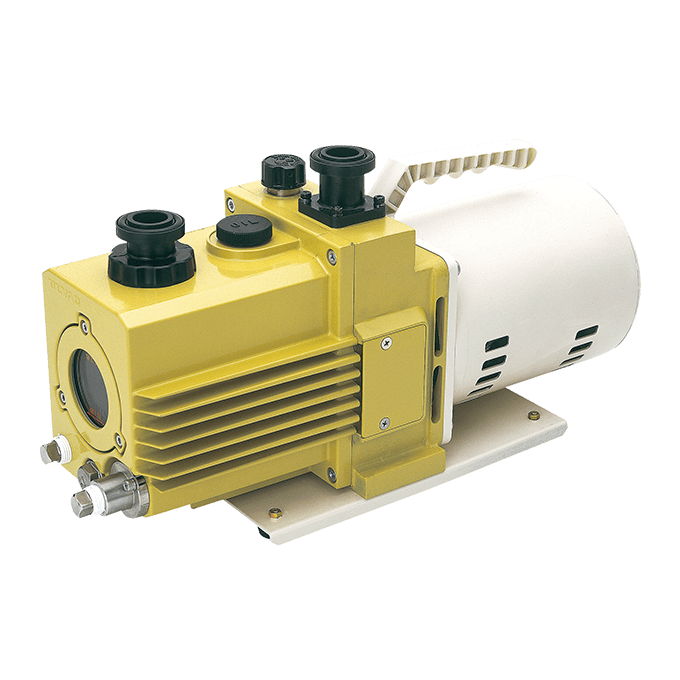

GCD Series - Small Direct Drive Oil Rotary Vacuum Pump (Chemical)
GCD-051xGCD-136XGCD-201X
Item / Model GCD-051X GCD-136X GCD-201X
Pumping Speed  50 Hz  l/min 50 135 200
Ultimate Pressure Pa 0.67
Voltage Available 100V ~ 220V / 1 Phase / 50 Hz 100V ~ 220V / 1 Phase / 50 Hz 100V ~ 220V / 1 Phase / 50 Hz
Oil Capacity  Litre 0.5 ~ 0.8 1.0 1.1
Pump Oil  Model SO-M
Cooling Method Air Cooled
Inlet  KF25
Weight  kg 14.1  25.4 29.4
Dimension (mm) W x L x H 165.5 x 419 x 222.7 170 x 493 x 241.1 170 x 541.5 x 241.1
Oil Mist Trap OMC-050 (Anti-Corrosive) OMC-200 (Anit-Corrosive)
Features - Corriosion Resistant for Toxic and Corrosive Gases  ideal for chemical, pharmaceutical application
- Surface of gas contacted parts are coated with hard plating.

 MBS Series - Mechanical Booster Pump
mbs-053
Item / Model MBS-053
Pumping Speed  50 Hz  l/min 833
Ultimate Pressure Pa 0.4
Voltage Available 100V ~ 220V / 1 Phase / 50 Hz
Oil Capacity  Litre 0.5
Pump Oil  Model SMR-200
Cooling Method Air Cooled
Inlet  VG-40
Vent  VF-40
Weight  kg 11
Backing Pump Oil Rotary Vacuum Pump 130-200 L/Min
Dimension (mm) W x L x H 167 x 410 x 130


LIP CHEE (THAILAND) CO., LTD.
Address: 221/28 Panya Indra Road, Bang Chan, Khlong Sam Wa, Bangkok 10510, Thailand
Tel: (+66) 02-517-5122 ~ 23 Fax: (+66) 02-517-5124
Mobile: (+66) 090-888-7533 Line ID: lipchee
Email: sale@lipchee.com  Website: www.lipchee.com
 Authorised Agent for Ulvac Thailand and Singapore
