Ulvac Vacuum Gauge
 |

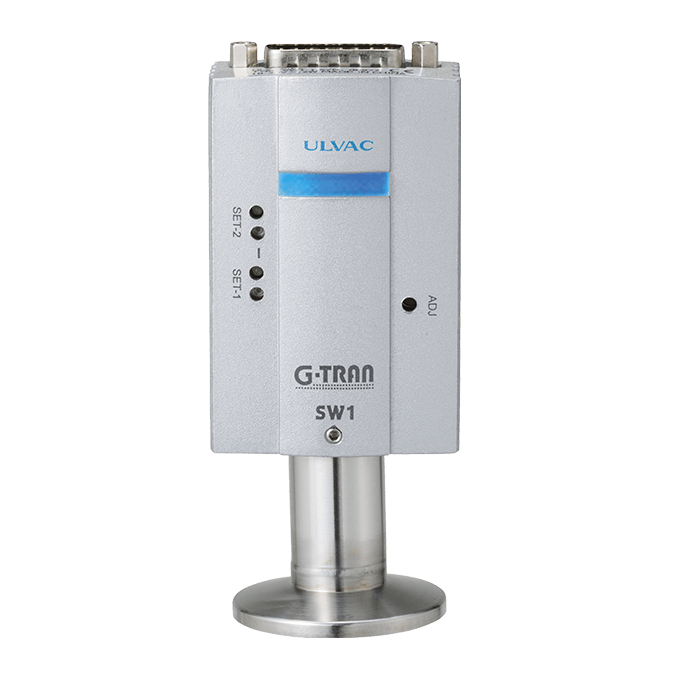

SW1-1 / SW1-2 Pirani Vacuum Gauge (Transducer Type) Measurable Pressure Range: 5.0 x 10-2 ~ 1.0 x 105 Pa Monitor for Setpoint: 1,2; 0 to 10V Log Output Weight: 150g Dimension: 70mm x 46mm x 28mm Power Supply: DC18V ~ 30V, 2W (4.8 w/power input) Operating Temperature: 10 ~ 40°C Compatible Sensor Head: SWP-16 (NW16), SWP-25 (NW25), SWP-R1/8 (R1/8), SWP-P18 ( Ø18), SWP-P15 (Ø15) Applicable Standard: CE |
 |

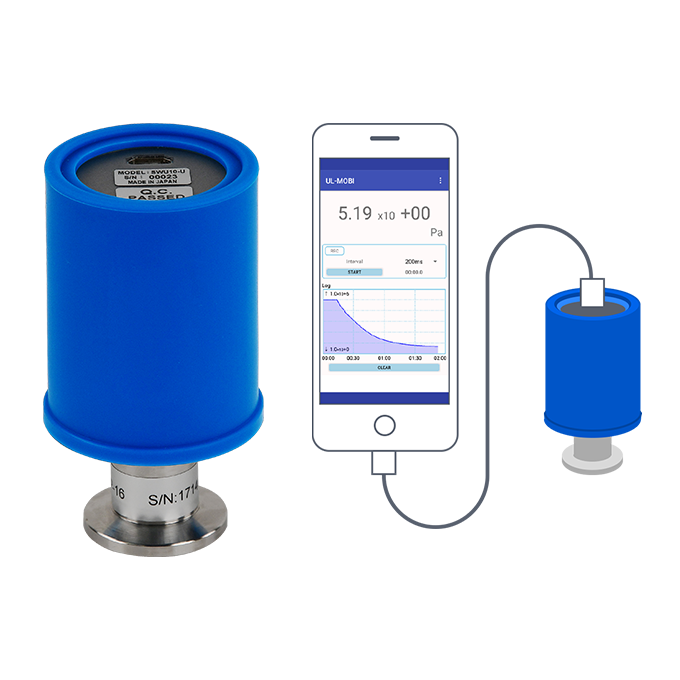

SWU10-U Smartphone-Direct Pirani Gauge (Transducer Type) Measurable Pressure Range: 5.0 x 10-2 ~ 1.0 x 105 Pa Weight: 85g (NW16 Spec) Dimension: Ø46mm x 81mm Power Supply: DC (350MA) Operating Temperature: 10 ~ 40°C I/O Connector: USB microB Fitting: NW16, NW25, R1/8, Ø18, Ø15 Applicable Standard: CE |
 |

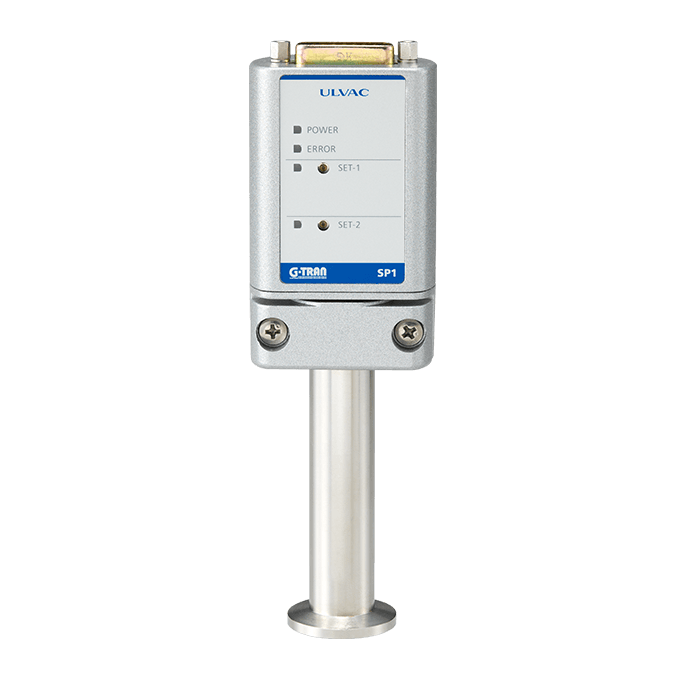

SP1 Pirani Vacuum Gauge (Transducer Type) Type: Sensor Unit Measurable Pressure Range: 4.0 x 10-1 ~ 3.0 x 103 Pa Setpoint: 1/2 LED Display: Power, error, set point 1, set point 2 Weight: 190g (Excluding Sensor Head) Power Supply: DC24V. 90mA(Max) Operating Temperature: 10 ~ 40°C Compatible Sensor Head: WP-01, WP-02, WP-03, WP-16 |
 |
ISG1 Display Unit Pressure indication: 2 digit ¨.¨x 10¨ (LED) Scale: Pa LED Display: Error, Deg, Zero, Set-1,2,3 Serial communication type: RS-485 Weight: 250g (Excluding Sensor Head) Power Supply: DC24V Operating Temperature: 10 ~ 40°C Dimension: 48mm x 70mm x 96mm Compatible Sensor Head: G-Tran Series SW1-1, SW1-2, SP1, Capacitance Manometer CCMT-D Applicable Standard: CE |
 |

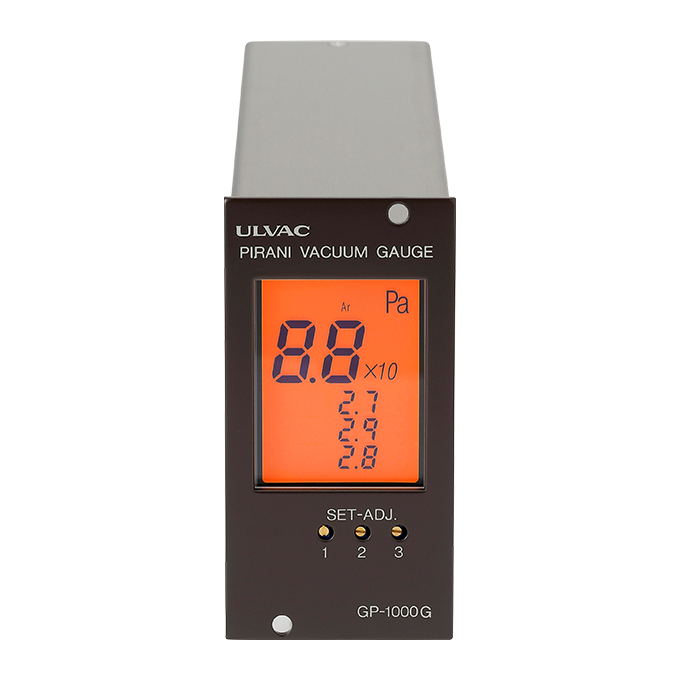

GP-1000G Pirani Vacuum Gauge (General Purpose Type) Measurable Pressure Range: 4.0 x 10-1 ~ 2.7 x 103 Pa Display: LCD Setpoint: 3 points Communication serial: RS-232C Weight: 1kg (Controller) Power Supply: AC100V to 240V Operating Temperature: 10 ~ 40°C Power Cable: 3m x 1pc Compatible Sensor Head: WP-01, WP-02, WP-03, WP-16 Sensor Head Cable: 2, 5, 10, 15, 20, 25, 30, 50, 100m + Detection Unit GP-H |
 |

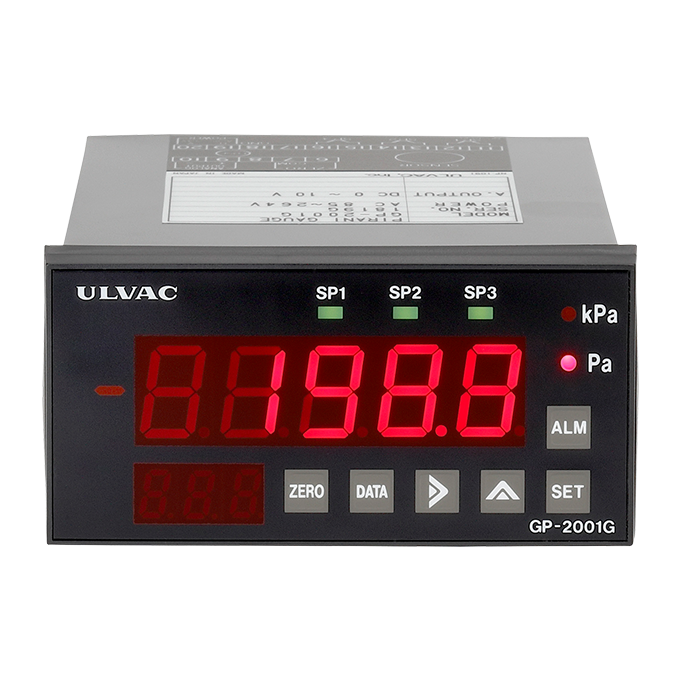

GP-2001G / GP-2002G Pirani Vacuum Gauge (General Purpose Type) Measurable Pressure Range: 4.0 x 10-1 ~ 3.0 x 103 Pa Display: LED Setpoint: 3 points Weight: 0.4kg (Controller) Power Supply: AC100V to 240V Operating Temperature: 10 ~ 40°C Power Cable: 3m x 1pc Compatible Sensor Head: WP-01, WP-02, WP-03, WP-16 Sensor Head Cable: 2, 5, 10, 15, 20, 25, 30, 50, 100m + Detection Unit GP-H *Power Supply for GP-2002G is DC24V. |
 |

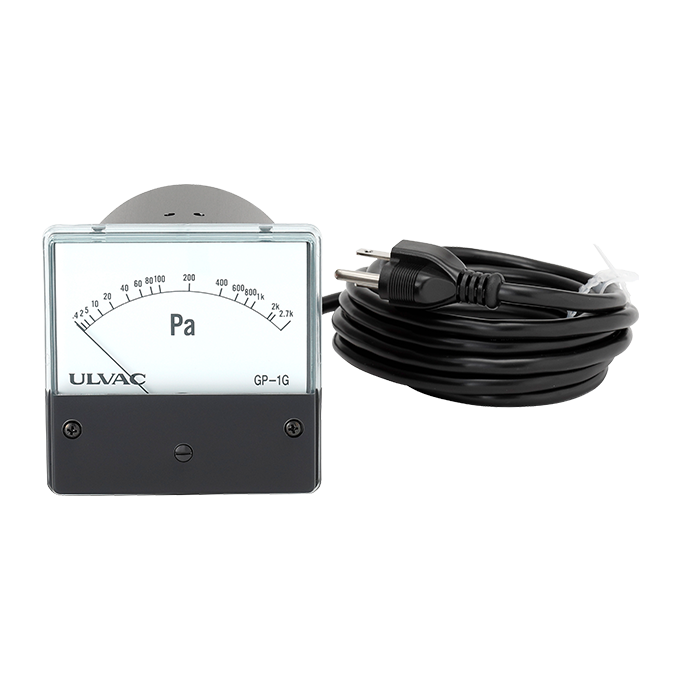

GP-1G Pirani Vacuum Gauge (General Purpose Type) Measurable Pressure Range: 4.0 x 10-1 ~ 2.7 x 103 Pa Display: Analog indication Weight: 0.7kg Power Supply: AC100V to 240V Operating Temperature: 10 ~ 40°C Power Cable: 3m (with controller) Dimension: 100mm x 130mm x 100mm Compatible Sensor Head: WP-01, WP-02, WP-03, WP-16 Sensor Head Cable: 2, 5, 10, 15, 20, 25, 30, 50, 100m + Detection Unit GP-H |
 |

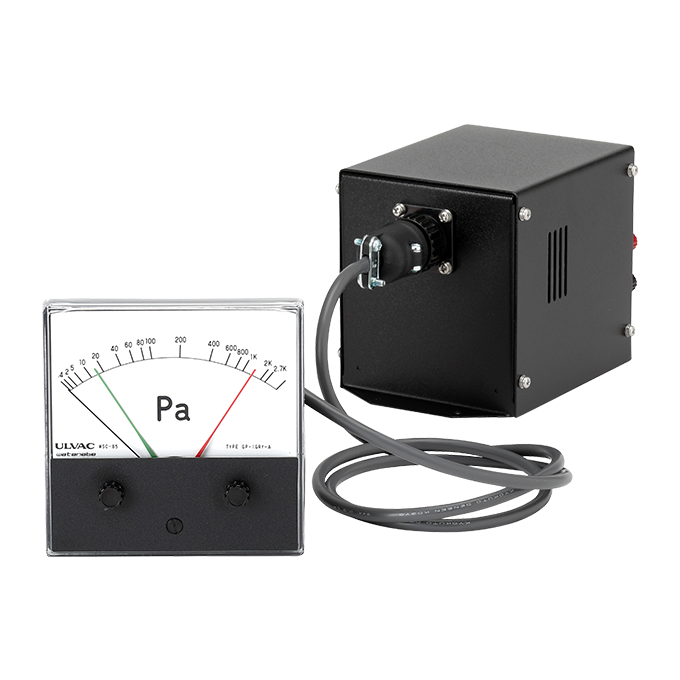

GP-1GRY Pirani Vacuum Gauge (General Purpose Type) Measurable Pressure Range: 4.0 x 10-1 ~ 2.7 x 103 Pa Display: Analog indication Set points: 2 (AC100V / 0.5A) Weight: 1kg (Controller) Power Supply: AC100V to 240V Operating Temperature: 10 ~ 40°C Power Cable: 3m (with controller) Dimension: Controller: 90mm x 140mm x 100mm Meter (A-Type): 100mm x 111mm x 100mm Compatible Sensor Head: WP-01, WP-02, WP-03, WP-16 Sensor Head Cable: 2, 5, 10, 15, 20, 25, 30, 50, 100m + Detection Unit GP-H |
 |

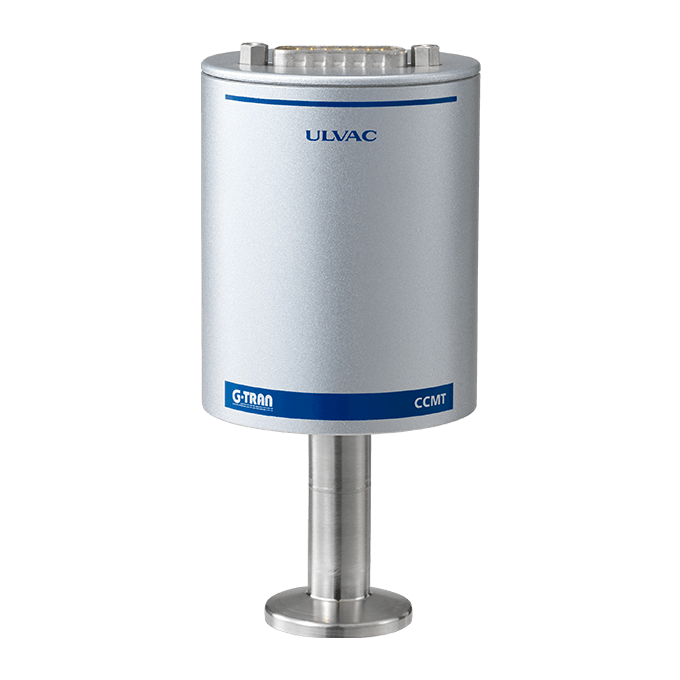

CCMT-D Series Ceramic Capacitance Manometer Range Full Range CCMT-1000D - 133kPa CCMT-100D - 13.3kPa CCMT-10D - 1.33kPa CCMT-1D - 133 Pa Operating Temperature: 10 ~ 50°C Power Supply: DC14V ~ 30V, 1W Weight: 329g Dimension: 55mm x 117mm Electrical Connector: D-sub 15-pin male (No.4-40, DNC screw) |
.png) |

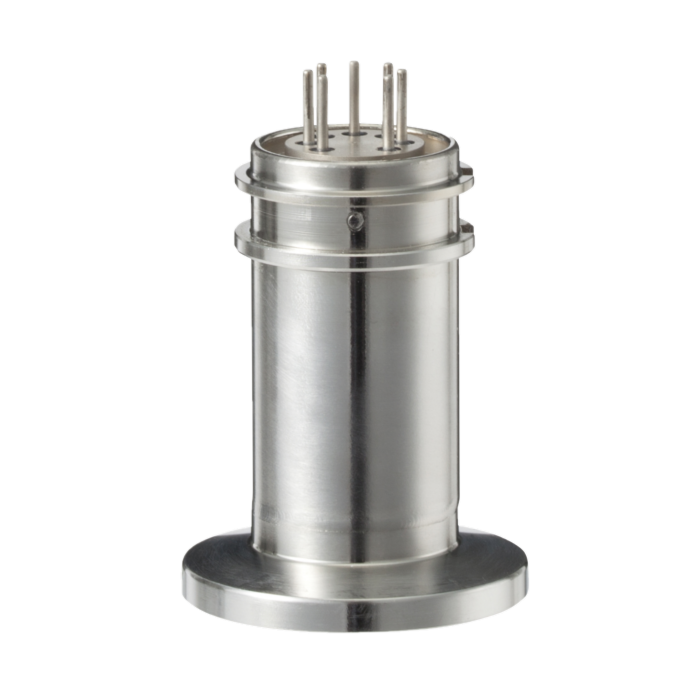

SWP-16 Replacement Sensor for SW1 Fitting: NW16 Compatible Gauge: SW1-1, SW1-2 |
 |

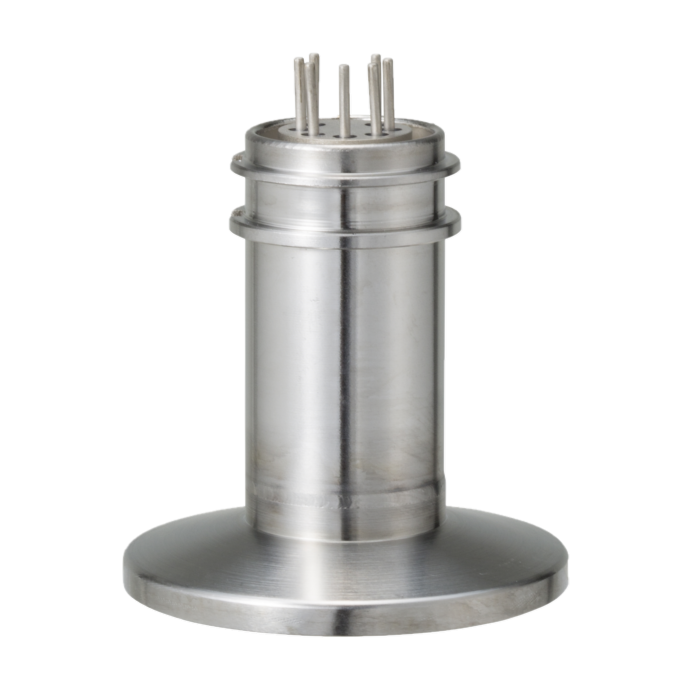

SWP-25 Replacement Sensor for SW1 Fitting: NW25 Compatible Gauge: SW1-1, SW1-2 |
 |

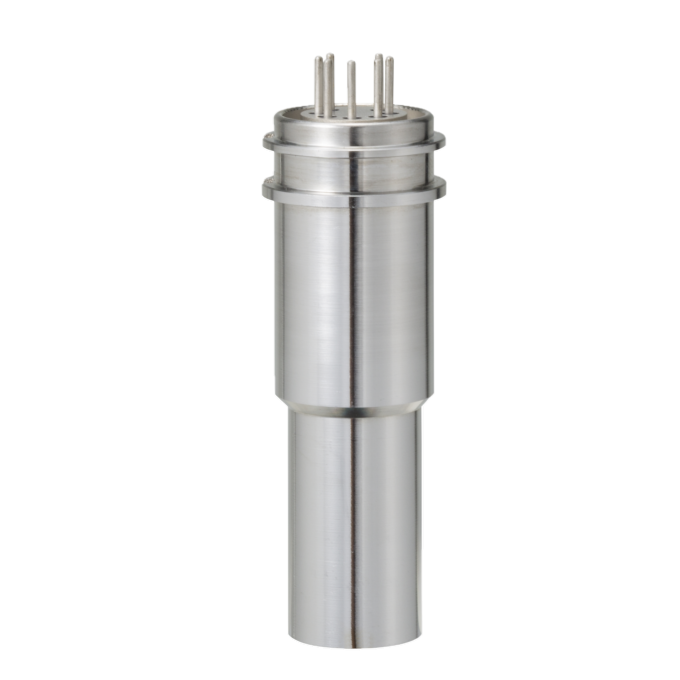

SWP-P18 Replacement Sensor for SW1 Fitting: ØP18 Compatible Gauge: SW1-1, SW1-2 |
 |

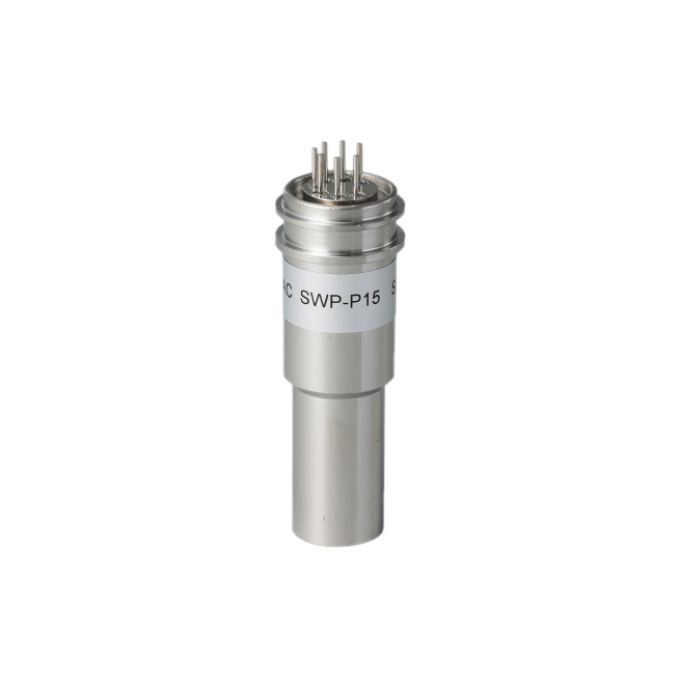

SWP-P15 Replacement Sensor for SW1 Fitting: ØP15 Compatible Gauge: SW1-1, SW1-2 |
 |

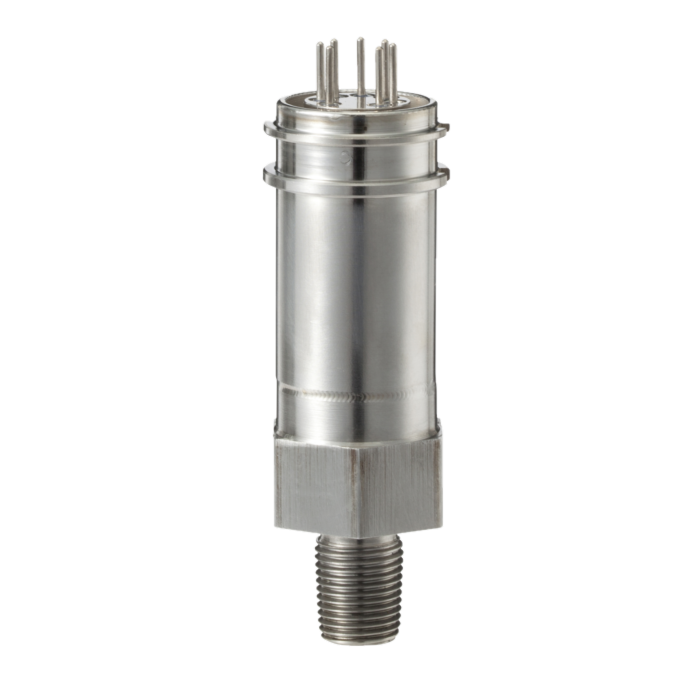

SWP-R1/8 Replacement Sensor for SW1 Fitting: R1/8 Compatible Gauge: SW1-1, SW1-2 |
 |

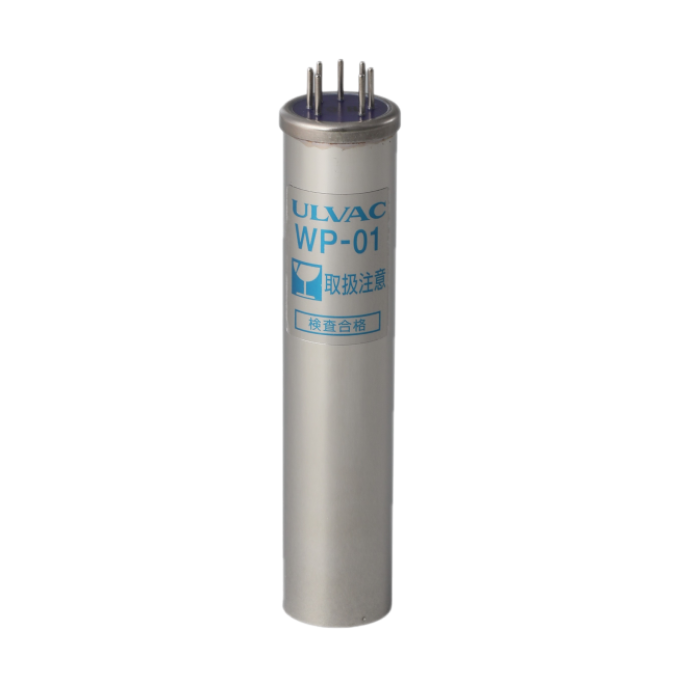

WP-01 Pirani Sensor Head for SP1 / GP-G Series Fitting: Ø18 Compatible Gauge: SP1, GP-1000G, GP-2001G, GP-2002G, GP-1G, GP-1GRY |
 |

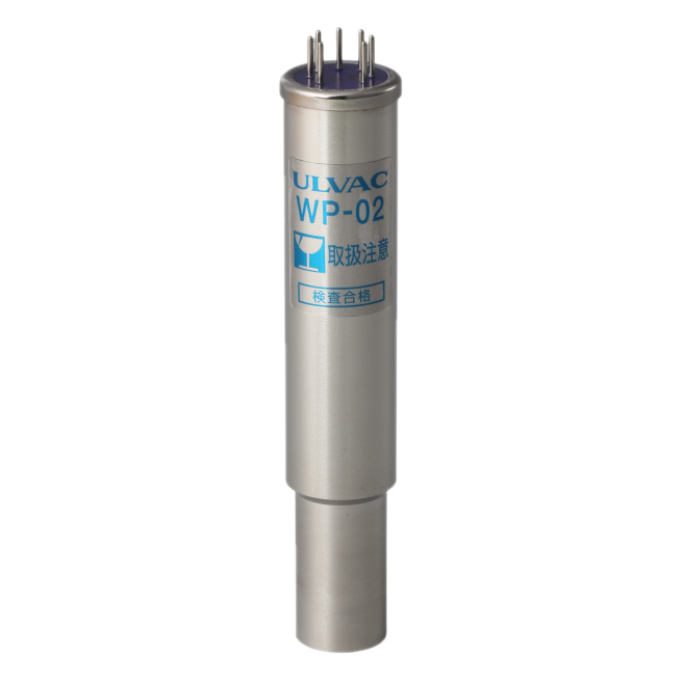

WP-02 Pirani Sensor Head for SP1 / GP-G Series Fitting: Ø15 Compatible Gauge: SP1, GP-1000G, GP-2001G, GP-2002G, GP-1G, GP-1GRY |
 |

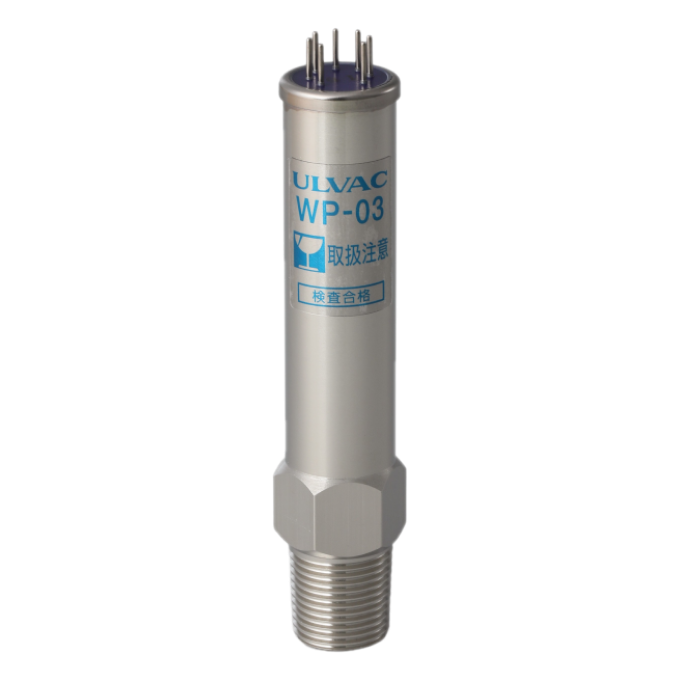

WP-03 Pirani Sensor Head for SP1 / GP-G Series Fitting: R3/8 Compatible Gauge: SP1, GP-1000G, GP-2001G, GP-2002G, GP-1G, GP-1GRY |
 |

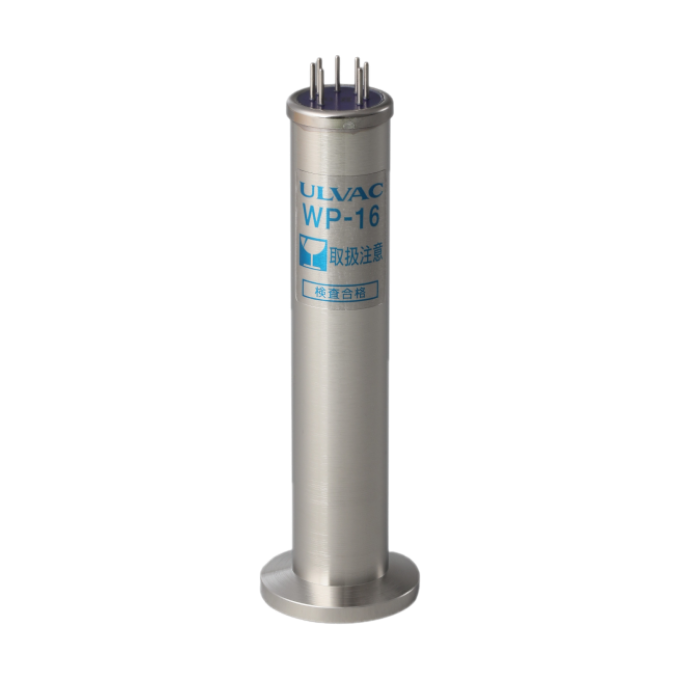

WP-16 Pirani Sensor Head for SP1 / GP-G Series Fitting: NW16 Compatible Gauge: SP1, GP-1000G, GP-2001G, GP-2002G, GP-1G, GP-1GRY |
