Vacuum Accessories
|

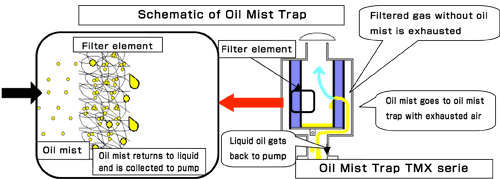

Oil Mist Trap - TM / TMX Series |
   |
| Model |
Applicable
Vacuum Pump Model |
Weight |
Material |
| TMX-1 |
PVD-180 (B)
PVD-360 (B)
VD-151
VD-201
D-330K(DK)
D-650K(DK) |
1.1 |
Trap: Mild Steel
(SPCC)
Filter: Glass wool |
| TMX-2 |
D-950K (DK) |
1.5 |
| TM-201 |
VD-301 (low loads)
VD-401 (low loads) |
8.5 |

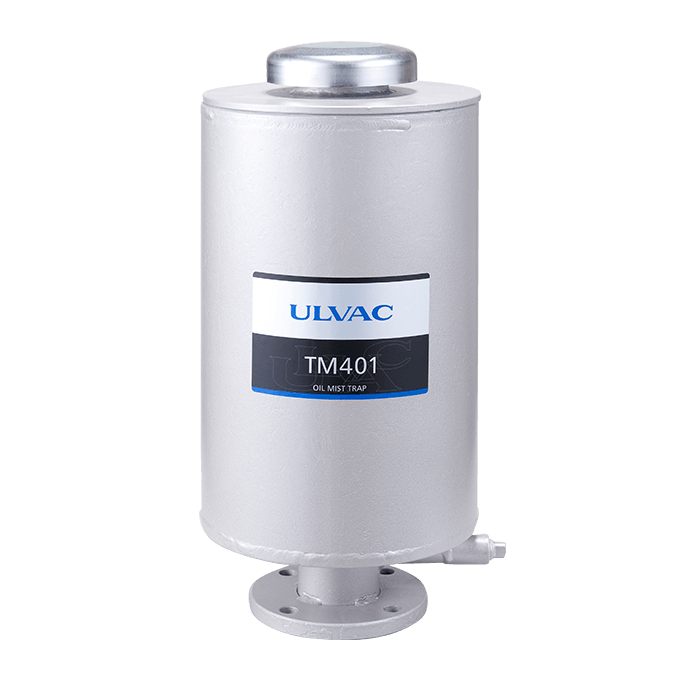

| TM-401 |
VD-301 (high loads)
VD-401 (high loads)
VD-601 (low loads)
VD-901 (low loads) |
10 |

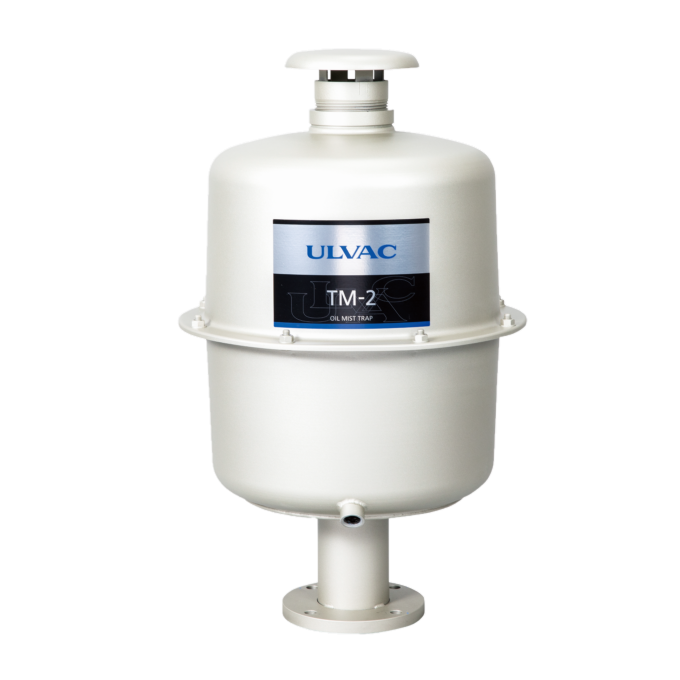

| TM-2 (standard, F) |
PKS-016
VD-601 (high loads)
VD-901 (high loads) |
5.7 (6.2) |
| TM-3 (standard, F) |
PKS-030
VD1501 |
10.5(11.5) |
| TM-4 (standard, F) |
PKS-070
VS-2401 |
23.5 (25) |
| TM-4S |
PKS-070 (high loads)
VS-2401 (high loads) |
59 |
|
|
|
 |
|
|
|
|
|

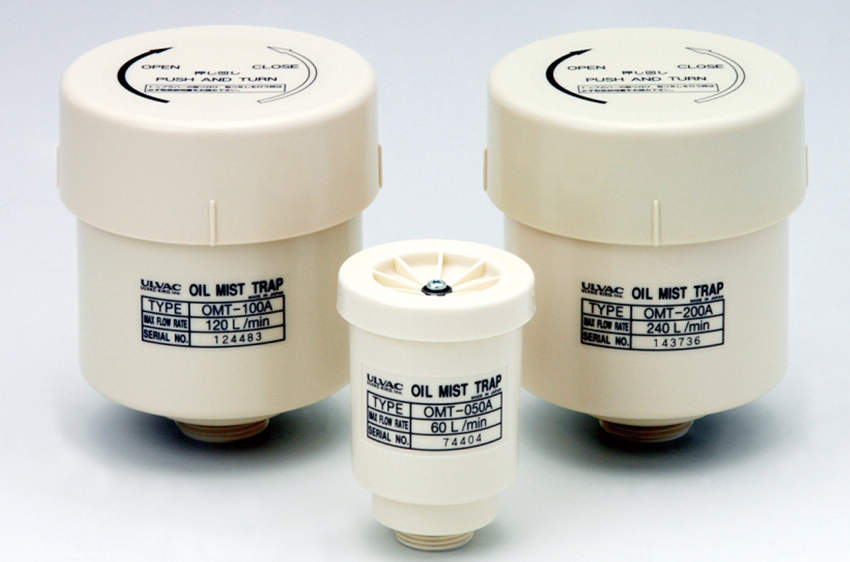

Oil Mist Trap - Small Vacuum Pump |
|
|
 |
|
|
| Model |
Applicable
Vacuum Pump Model |
| OMT-050A |
G-5DA, G-10DA, G-20DA, G-50DA,
G-25SA, G-50SA, GHD-031, GLS-051, GLD-040, GLD-051 |
| OMT-100A |
G-101S, G-101D |
| OMT-200A |
GLD-136A, GLD-136C, GLD-201A,
GLD-201B |
|
 |
| Model |
Applicable
Vacuum Pump Model |
| OMC-050 |
GCD-051X (Anti-corrosive) |
| OMC-200 |
GCD-136X, GCD-201X
(Anti-corrosive) |
|
|

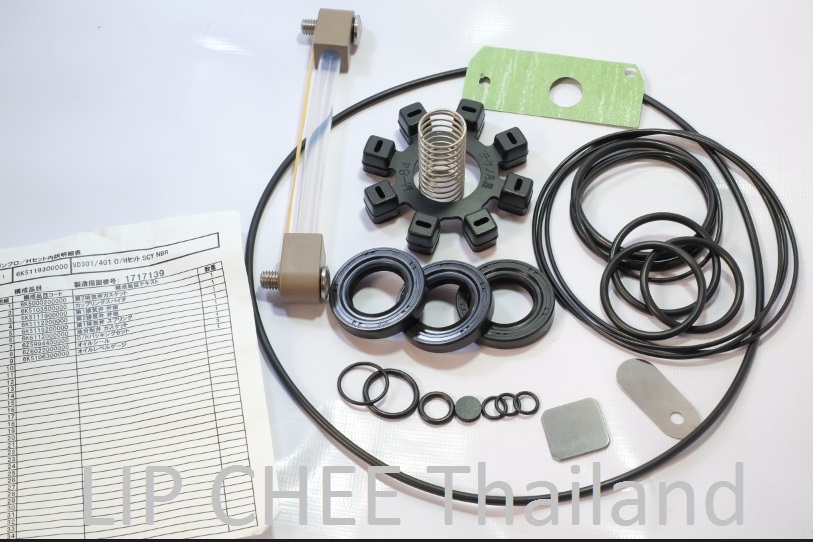

Overhaul Kit |
|
|
Original overhaul kit for all range of Ulvac Vacuum pump |
|
|
|

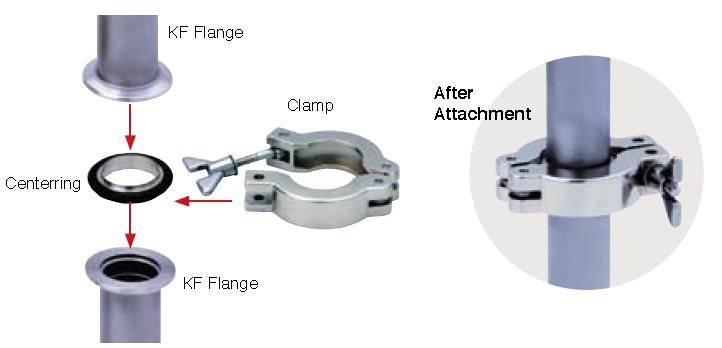

Clamp and Center Ring |
|
|
 |
|
|
|
Available Flange Size |
| KF-16 |
KF-25 |
KF-40 |
|
|
|
|

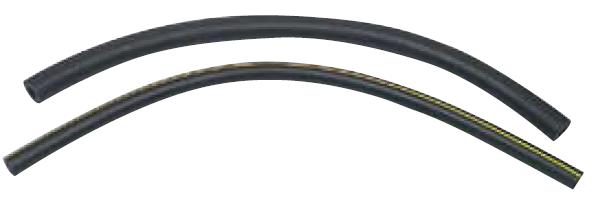

Flexible Hose / Rubber Vacuum Hose |
 |
 |
|
|
|
